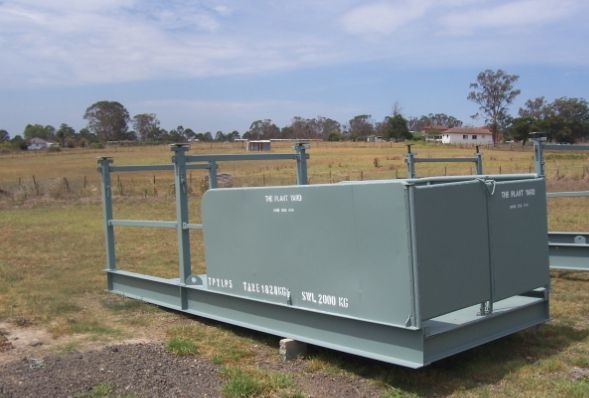

Material Crane Loading Platform Hire

The Plant Yard has loading platforms for hire. Our loading platforms allow for oversized materials to be easily lifted to the level needed on a building site. All our fixed crane loading platforms and decks are provided with engineering certification. Our loading platforms dimensions range from 2.1 metre wide to 3.0 metre wide and the various sizes can be found below, including roll in roll out units.

Material Crane Loading Platform Hire

Our loading platforms allow for oversized materials to be easily lifted to the level needed on a building site.

This can be done using our lifting cages which a ideal for moving bulky items such as joinery, kitchen cupboards and ducting.

All our fixed crane loading platforms and decks are provided with engineering certification. Our loading platforms dimensions range from 2.1 metre wide to 3.0 metre wide and the various sizes can be found below, including roll in roll out units.

All our fixed crane loading platforms and decks are provided with engineering certification.


Loading Platform 1SWL 3000 Kg4.2m inboard, 3.6m outboard, 2.18m wide external, 1.8m wide internal

Loading Platform 1

SWL 3000 Kg

4.2m inboard, 3.6m outboard, 2.18m wide external, 1.8m wide internal

Loading Platform 5SWL 2000 kg3m inboard, 3m outboard, 2m wide external, 1.66m wide internal

Loading Platform 5

SWL 2000 kg

3m inboard, 3m outboard, 2m wide external, 1.66m wide internal

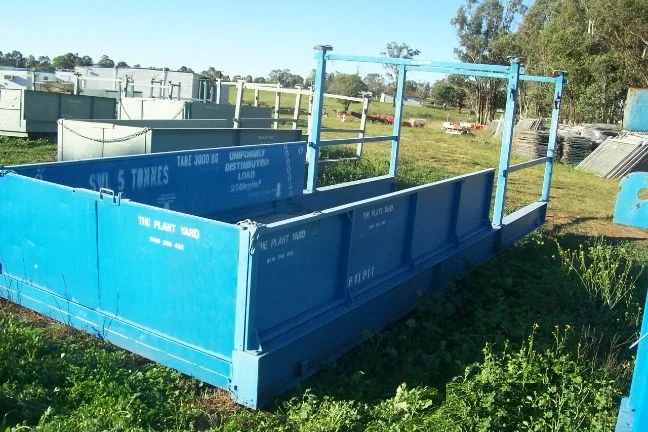

Loading Platform 11(roll in roll out)SWL 5000 kg5m inboard, 2.7m outboard, 2.1m wide external, 1.875m wide internal

Loading Platform 11(roll in roll out)

SWL 5000 kg

5m inboard, 2.7m outboard, 2.1m wide external, 1.875m wide internal

Loading Platform 2SWL 2000 Kg3.55m inboard, 4m outboard, 2.2m wide external, 1.9m wide internal.

Loading Platform 2

SWL 2000 Kg

3.55m inboard, 4m outboard, 2.2m wide external, 1.9m wide internal.

Loading Platform 6SWL 2000 kg4.04m inboard, 3.44m outboard, 2.27m wide external, 1.86m wide internal

Loading Platform 6

SWL 2000 kg

4.04m inboard, 3.44m outboard, 2.27m wide external, 1.86m wide internal

Loading Platform 3SWL 3000 kg3.55m inboard, 4.56m outboard, 2.1m external, 1.77m wide internal.

Loading Platform 3

SWL 3000 kg

3.55m inboard, 4.56m outboard, 2.1m external, 1.77m wide internal.

Loading Platform 4

SWL 2000 kg

4.11 inboard, 3050 outboard, 2m wide external, 1.66m wide internal

Loading Platform 7SWL 2000 kg3.45m inboard, 4.07m outboard, 2.27m wide external, 1.86m wide internal

Loading Platform 7

SWL 2000 kg

3.45m inboard, 4.07m outboard, 2.27m wide external, 1.86m wide internal

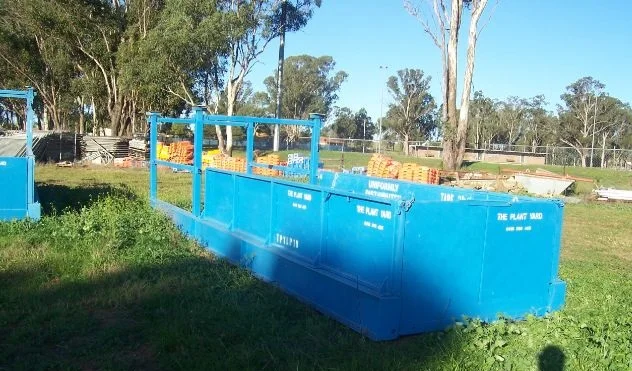

Loading Platform 10 (roll in roll out)SWL 5000 kg5m inboard, 2.7m outboard, 3m wide external, 2.8m wide internal

Loading Platform 10 (roll in roll out)

SWL 5000 kg

5m inboard, 2.7m outboard, 3m wide external, 2.8m wide internal
